Microstrip Transmission Lines Impedance - Conveying Microwave Frequency Signals

Micostrip is an electrical transmission line which is used to convey microwave frequency signals. Use this electrical engineering calculator to calculate impedance of microstrip transmission lines.

LM317 Current

To calculate LM317 Current:

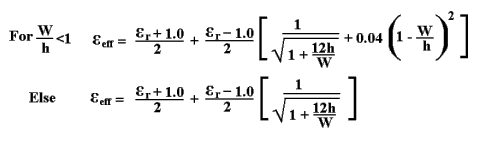

  • Dielectric Constant εr

  • Dielectric Height (h)

  • Width (W)

  •

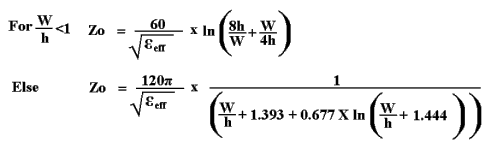

  • Impedance Z0




Micostrip is an electrical transmission line which is used to convey microwave frequency signals. Use this electrical engineering calculator to calculate impedance of microstrip transmission lines.
